Direct Manufacturer & Turnkey Line Supplier
MEAREG (Guangdong) manufactures heavy-duty, high-speed converting machinery engineered for lithium battery separators, ceramic coatings, optical films, release paper, and industrial laminates. Built with Pearl River Delta precision engineering.
≥99%
PRODUCT YIELD RATE
MAX COATING LINE SPEED
±0.1 mm
PRECISION SLITTING TOLERANCE
CUSTOM R&D TO COMMISSIONING
Engineered for clean edges, constant low-tension fluctuation, and high dimensional consistency across lithium battery
separators, ceramic composite films, and flexible packaging.

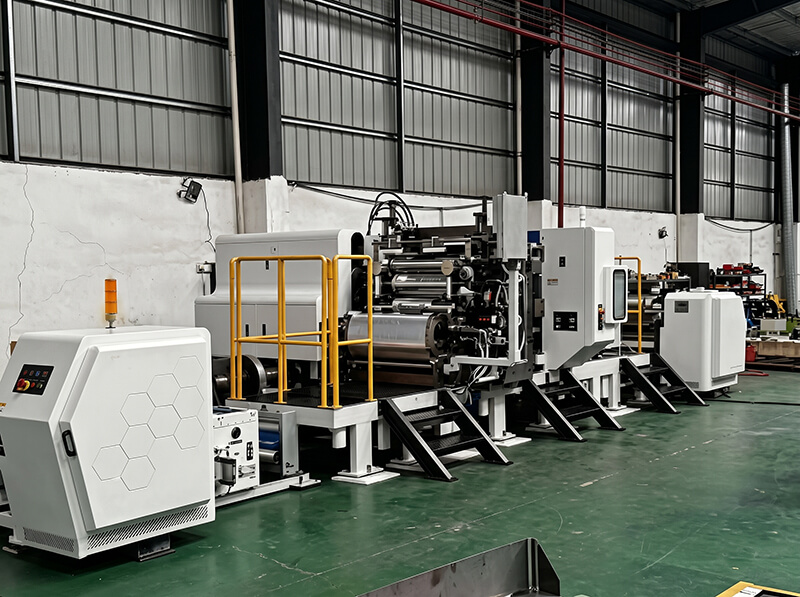

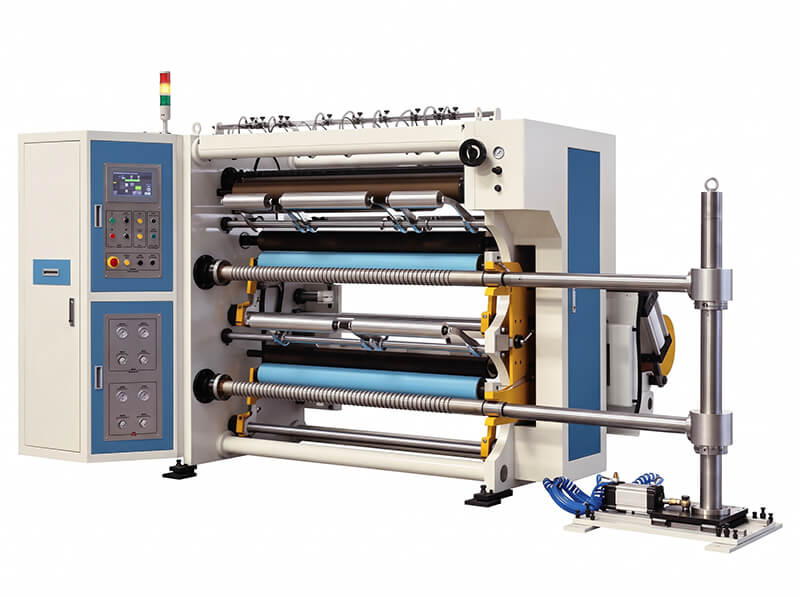

LITHIUM BATTERY EQUIPMENT
Designed for base films, ceramic-coated separators, and composite polymer films. Features upper/lower straight- and circular-knife switching.
View Models & Specs >

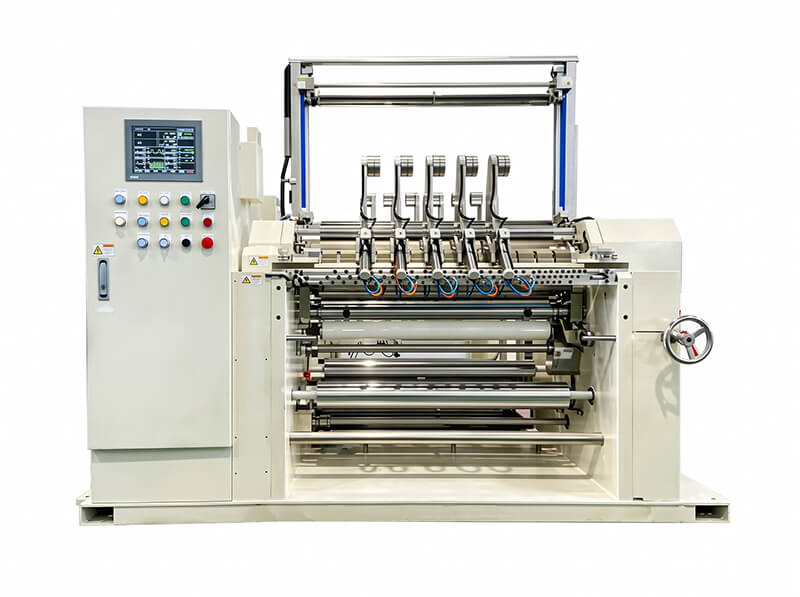

CERAMIC-COATED MATERIAL
Equipped with a 5-motor synchronous drive and negative-pressure brush suction to remove ceramic powder debris without scratching sensitive coatings.
View Models & Specs >

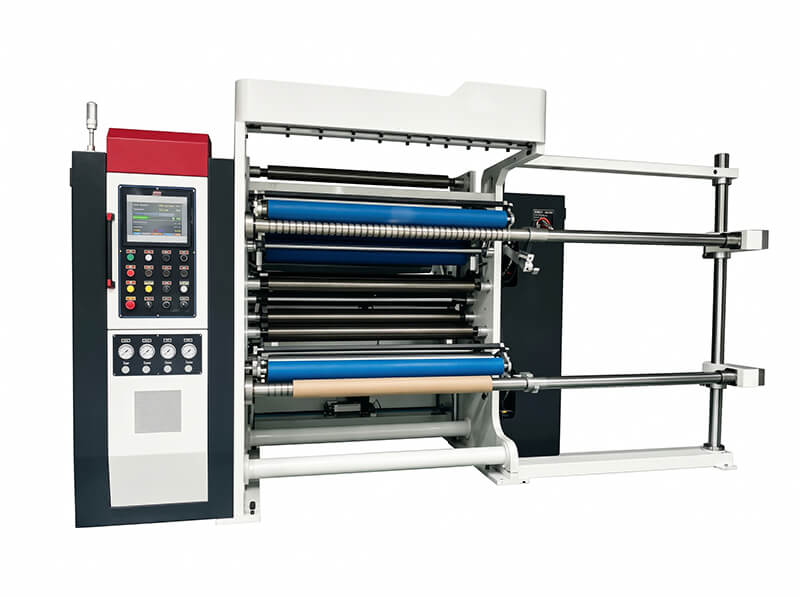

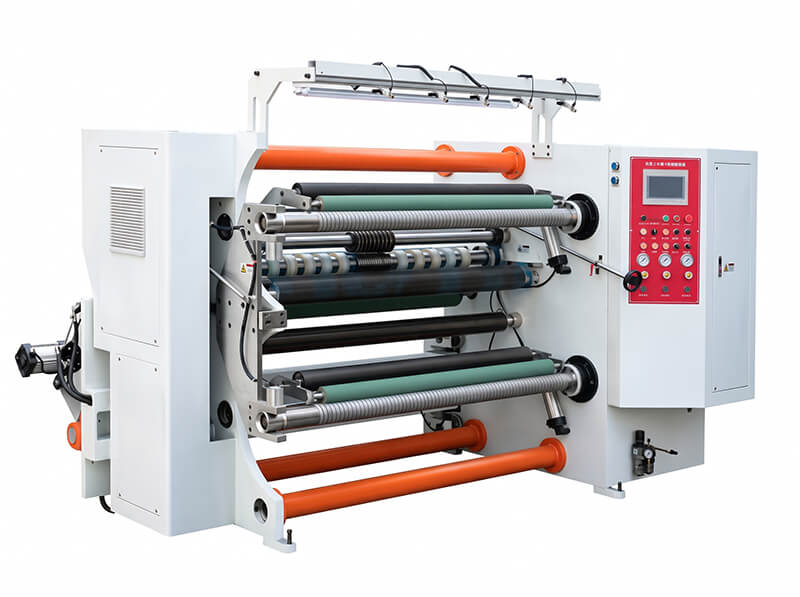

DUAL SHAFT CONVERTING
Dual independent rewinding shafts for flexible films, label stock, and laminated composites. Hydraulic shaftless unwinding and closed-loop control.
View Models & Specs >
HIGH-SPEED OPTICAL/ FILM
High-rigidity, vibration-damped frame for BOPP, PET, and CPP plastic films. Integrated automatic web-guiding and static-elimination units.
View Models & Specs >
Engineered for clean edges, constant low-tension fluctuation, and high dimensional consistency across lithium battery
separators, ceramic composite films, and flexible packaging.

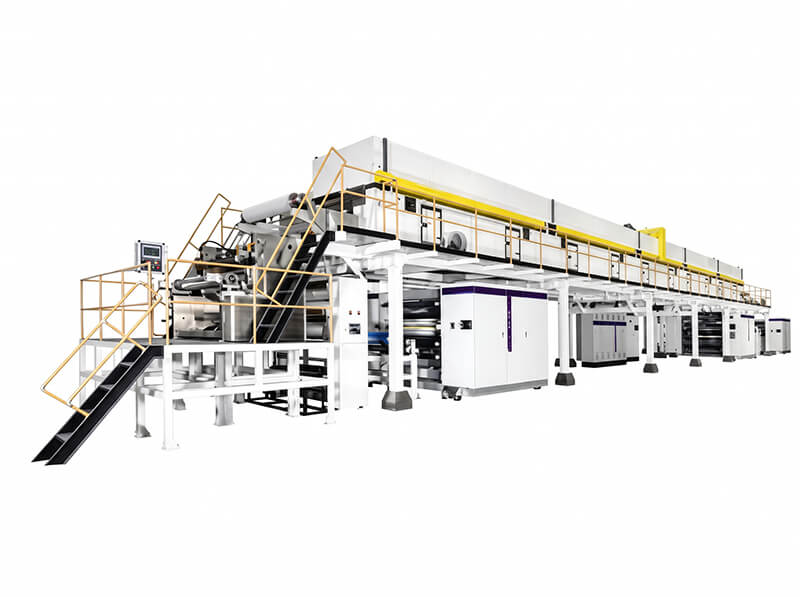

COMBINED PROCESS
Flexible dual-process line for paper substrates. Seamless switching between silicone and adhesive coating for release paper and tape production.
View Models & Specs >

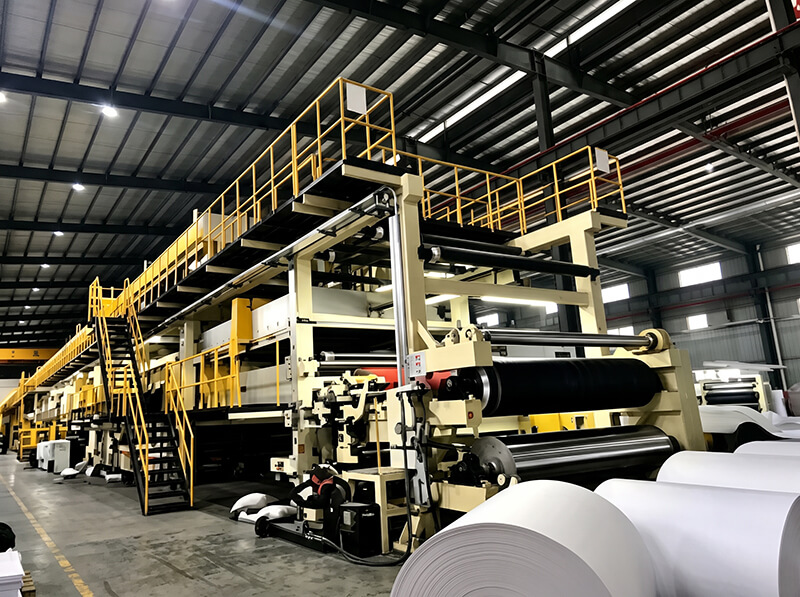

INDUSTRIAL PACKAGING
Heavy-duty roll-to-roll paper coating system built for industrial packaging applications with continuous tension control and extended runs.
View Models & Specs >

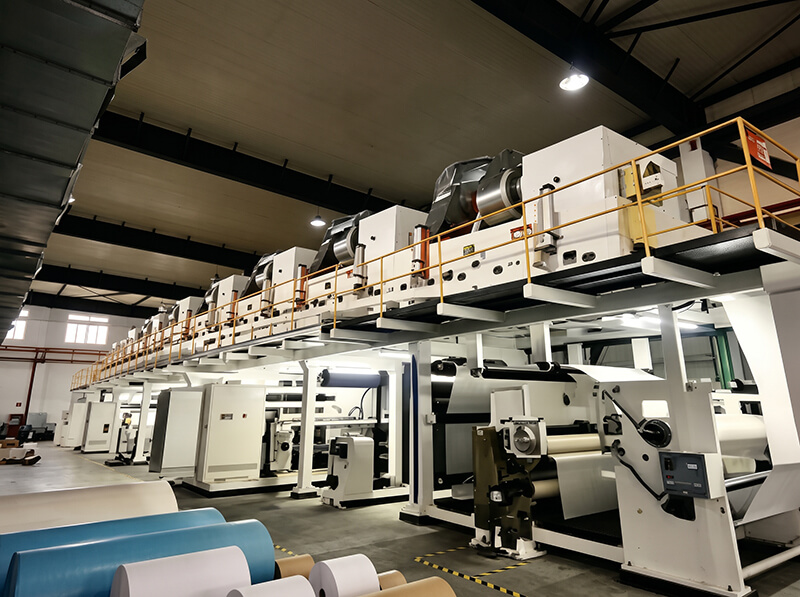

RELEASE PAPER SOLUTIONS
Dedicated line for release paper and PP substrates, with closed-loop tension systems that ensure uniform coating laydown across the 1700mm width.
View Models & Specs >

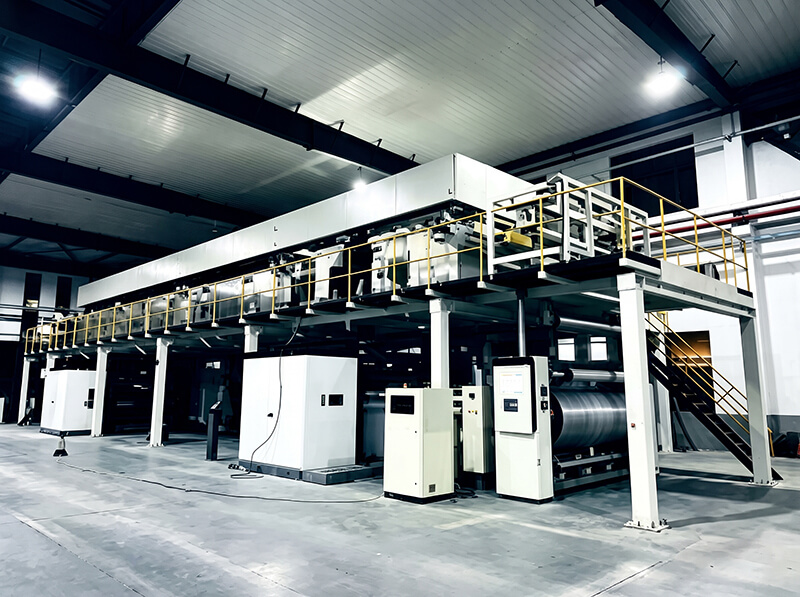

UV COATING TECHNOLOGY
Equipped with precision UV curing heads for PET, PE, PP, and paper webs. Provides controlled curing energy for high-performance optical and specialty coatings.
View Models & Specs >
Review exact operational parameters of MEAREG converting equipment. Full customized designs available
based on substrate tension curves and plant layout.
| Model Series | Category | Substrate Types | Working Width | Speed Range | Key Tolerance / Features |
|---|---|---|---|---|---|
| MG-1300DF | Separator Slitter | Base film, ceramic-coated separator |
Custom / Min 35 mm |
Up to 300 m/min |
±0.1 mm tolerance, Yield ≥99% |
| MG-950CB | Separator Slitter | Ceramic composite film (10–75 μm) |
Max 950 mm | 100 m/min | 5-motor sync, negative-pressure dust suction |
| MG-1429PPC | Paper Coating Line |
Paper-based packaging materials | 1400 – 2900 mm | 50 – 750 m/min | Heavy-duty continuous long drying system |
| MG-1429SC | Combined Coater | Paper, release base substrate | 1400 – 2900 mm | 50 – 650 m/min | Silicone & adhesive dual process switching |
| MG-1700RPC | Release Coater | Paper, PP flexible webs | 1700 mm | 30 – 500 m/min | Constant closed-loop tension system |
| MG-1700UVC | UV Coating Line | PET, PE, PP, paper webs | 500 – 1700 mm | 10 – 300 m/min | Precision UV irradiation & web guidance |
Based in Huizhou's Zhongkai National High-tech Zone, MEAREG integrates in-house mechanical R&D,
electrical automation programming, precision machining, and lifecycle field support.
Whether you require a standard slitter rewinder or a customized 2900mm wide-format high-speed coating production line, submit your technical requirements for a direct factory quotation within 24 business hours.
Enter your basic roll substrate specs to get custom recommendations.
Straightforward engineering facts regarding equipment selection, factory customization, and technical parameters.
MEAREG operates its manufacturing and R&D base in Zhongkai High-tech Zone, Huizhou, Guangdong, China. We leverage the complete Pearl River Delta supply chain to deliver full-cycle R&D, machining, electrical assembly, and pre-shipment FAT running trials.
The MG-950CB uses equal-pressure press rollers, a 5-motor synchronous drive system, and brush-assisted negative-pressure vacuum suction. This collects ceramic dust without abrading or micro-cracking the delicate inorganic coating layer.
Depending on the model and web properties, our machines support interchangeable upper straight knife, lower straight knife, rotary shear, and razor blade cutting assemblies for clean, burr-free roll edges.
Yes. Our experienced commissioning engineers handle turnkey factory delivery, electrical wiring verification, software calibration, and test-run batching for clients across Southeast Asia, Russia, Europe, and Africa.
